HIKMICRO
LE15S
Thermal Monocular

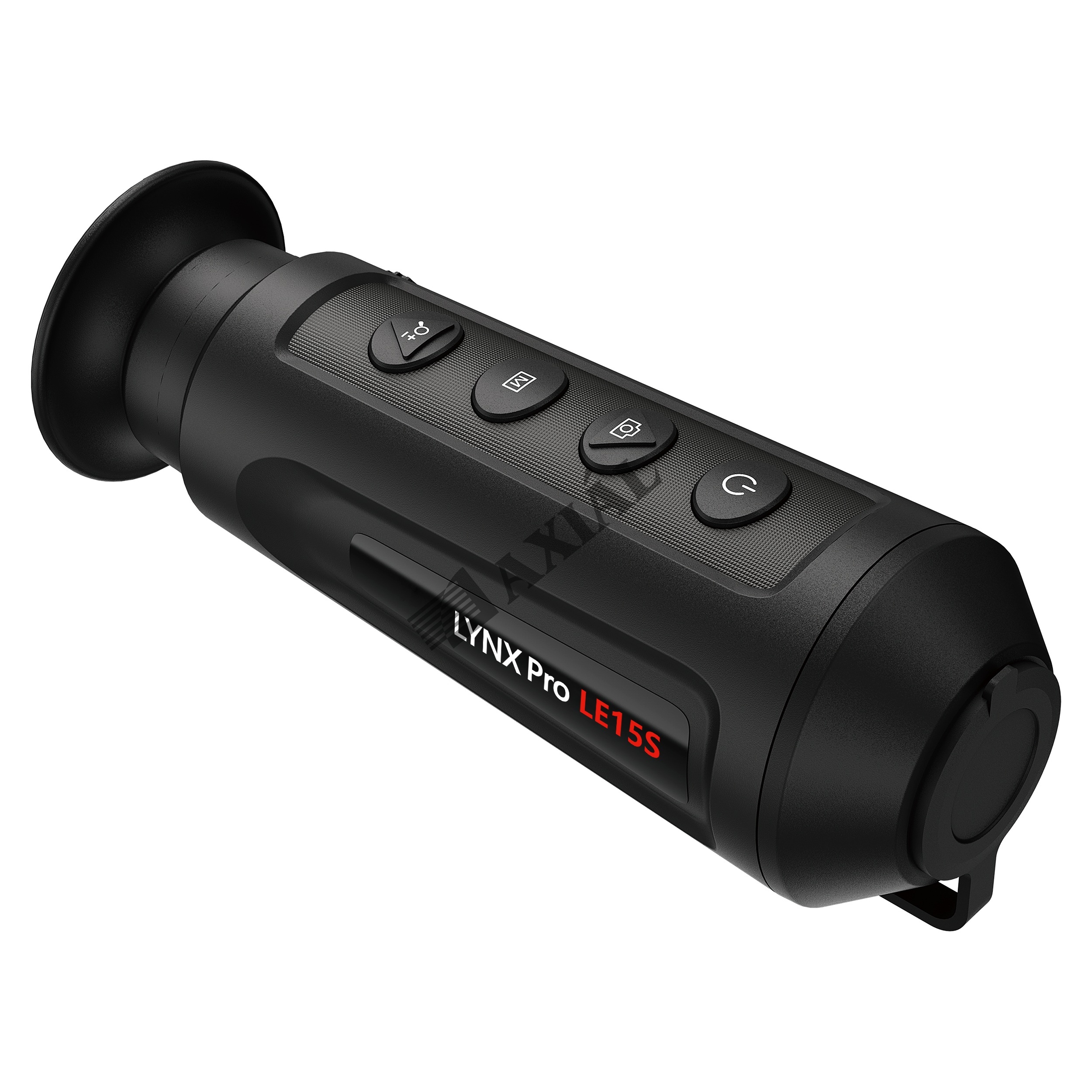

HIKMICRO LYNX S LE15S thermal monocular is equipped with a 256 x 192 infrared detector and an 800 x 600 OLED display. It supports functions of observation, distance measurement, hotspot, and so on. The highsensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as hunting, hiking, searching and rescuing, etc.
Key Features
256 x 192 resolution, 12 pm, high sensitivity detector
NE-TD less than 35 rnK @ 25 0 C), F # -1.0
Adaptive AGC, DDE, 3D DNR
800 x 600 resolution 0.32-inch UED display
Built-in rechargeable lithium battery
Up to 8 hours continuous running
Support hotspot
Specification
THERMAL MODULE
IMAGE SENSOR MAX. RESOLUTION
FRAME RATE
PIXEL INTERVAL
RESPONSE WAVEBAND
NE-TD
LENS (FOCAL LENGTH)
DETECTION RANGE
MIN. FOCUSING DISTANCE
APERTURE
MAGNIFICATION
FIELD OF VIEW (H x V),
DEGREES/M @100 M
VOx Uncooled Focal Plane Arrays
256 x 192
50
12 pm
8 pm to 14 pm
Less than 35 mK @
15 mm
750 m
10 m
Fl.O
11.69 0 x 8.78 0 /20.47 m x 15.35
= 1.0
m
IMAGE DISPLAY
DISPLAY
IMAGE MODE
CONTRAST ADJUSTMENT
BRIGHTNESS ADJUSTMENT
FFC (FLAT FIELD CORRECTION)
MODE
EXIT PUPIL
EYE RELIEF
DIOPTER (RANGE)
TONE ADJUSTMENT
800 x 600, 0.32 inch, UED
Black Hot, White Hot, Red Hot, Fusion
Yes
Yes
Auto, Manual, External Correction
20 mm 6 mm
-50 to +4D
Cold, Warm
SYSTEM
RECORD VIDEO
CAPTURE SNAPSHOT
STANDBY MODE
STORAGE
PIP
HOTSPOT
Yes
Yes
Yes
Built-in memory module (8 6B)
Yes
Yes
DIGITAL ZOOM
HOT TRACK
DISTANCE MEASUREMENT
Yes
Yes
POWER SUPPLY
BATTERY TYPE
BATTERY OPERATING TIME
BATTERY CAPACITY DISPLAY
POWER SUPPLY
Lithium Battery
8 hours continuous running with CVBS and hotspot off (@ 250 C) 6 hours continuous running with CVBS and hotspot off (@ 250 C)
Yes
5 VDC/2 A
GENERAL
HARDWARE INTERFACE
POWER CONSUMPTION WORKING TEMPERATURE
PROTECTION LEVEL
DIMENSION WEIGHT
Type-C Interface
1.5 w
-20 0 C to 550 C (-4 0 F to 131 0 F)
IP67
158.3 mm x 61 mm x 57 mm (6.23" x 2.40" x 2.24")
260 g (0.57 1b)
Available Model
LE15S
Unit: mm
Non-dust Cloth (xl) USB Cable 6<1) Protective Bag (xl) Wrist Strap (xl)
COMPLIANCE NOTICE: The thermal series products might be subject to export controls in various countries or regions, including without limitation, the United States, European Union, United Kingdom and/or other member countries of the Wassenaar Arrangement. Please consult your professional legal or compliance expert or local government authorities for any necessary export license requirements if you intend to transfer, export, re-export the thermal series products between different countries.
